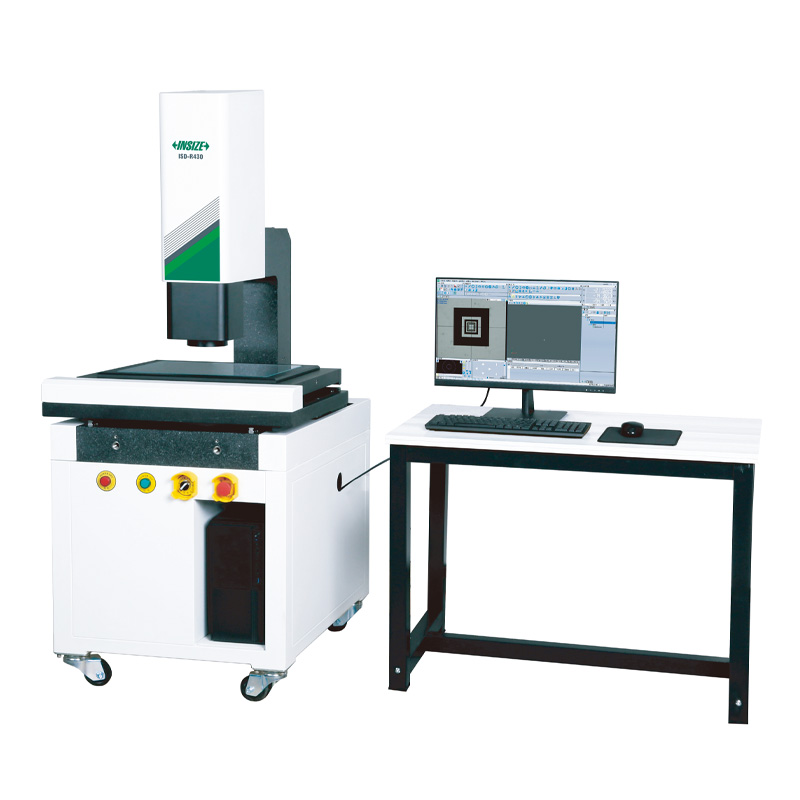

CNC Vision Measuring Systems (Standard Type)
Code: ISD-R Series
Motorized zoom objective
Granite body, high accuracy and stability
Servo motors for X, Y, Z axis
| Code | Range | Accuracy | Resolution | Repeatability | Magnification | Max. load |
|---|---|---|---|---|---|---|
| ISD-R320 | 300×200×200mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 35X~165X (on 23.8'' monitor) | 35kg |
| ISD-R430 | 400×300×200mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 35X~165X (on 23.8'' monitor) | 35kg |
| ISD-R540 | 500×400×200mm | ≤(2.8+L/200)µm | 0.5µm | 2µm | 35X~165X (on 23.8'' monitor) | 35kg |

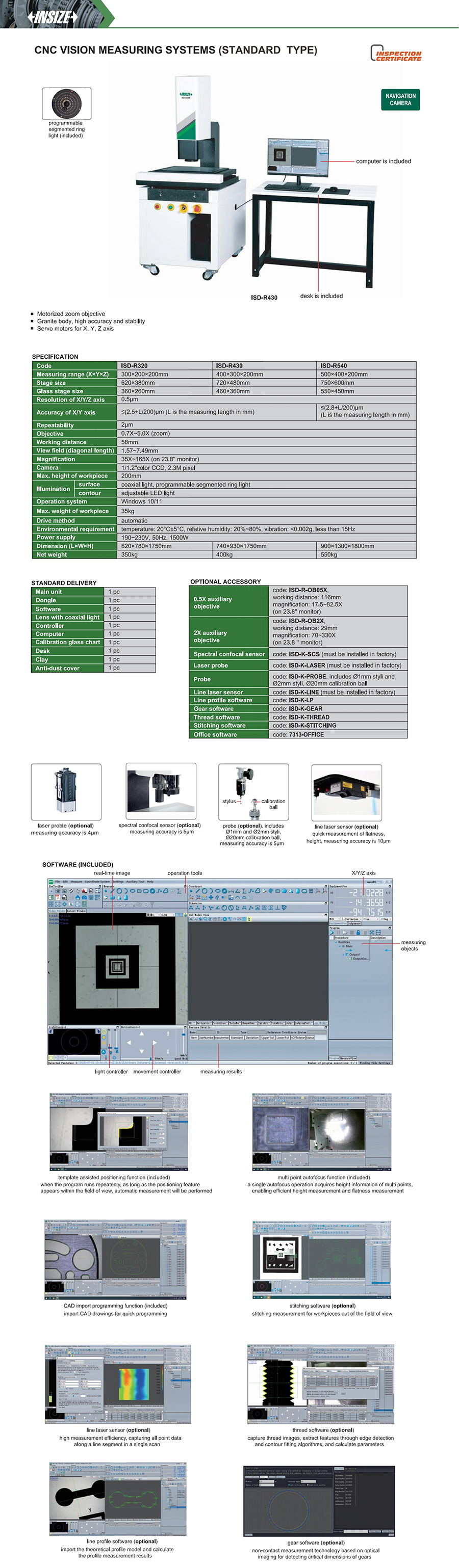

View the complete
product specifications
