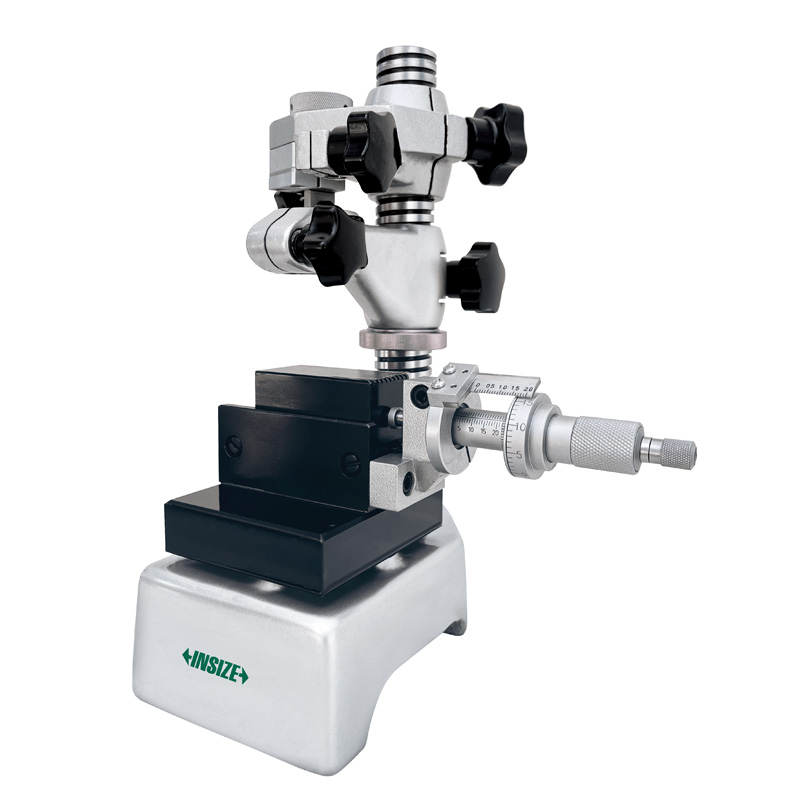

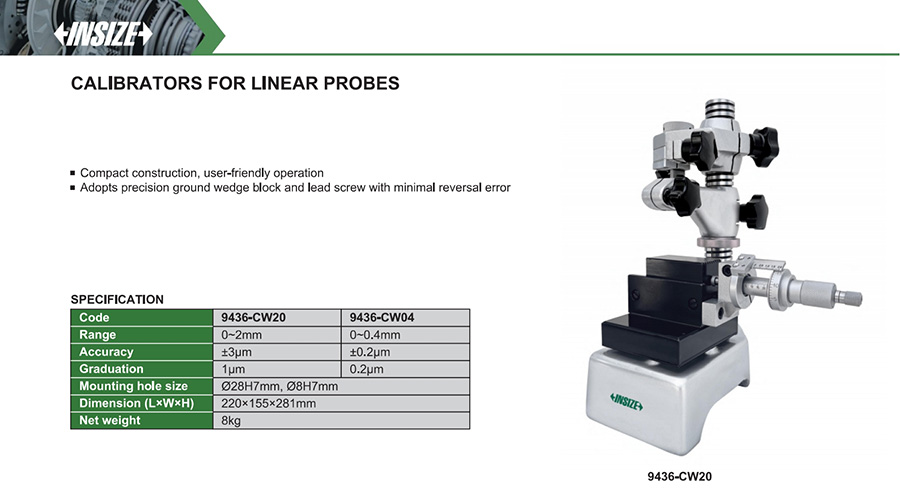

Calibrators For Linear Probes
Code: 9436-CW20/CW04
Compact construction, user-friendly operation
Adopts precision ground wedge block and lead screw with minimal reversal error
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 9436-CW20 | 0~2mm | ±3µm | 1µm |
| 9436-CW04 | 0~0.4mm | ±0.2µm | 0.2µm |
