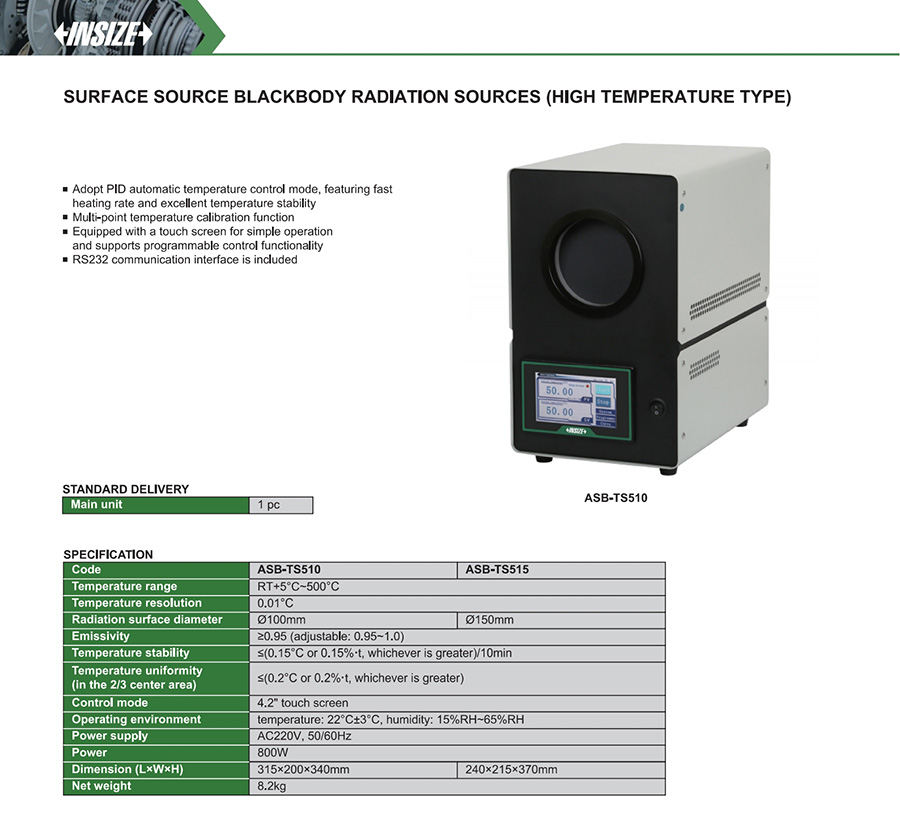

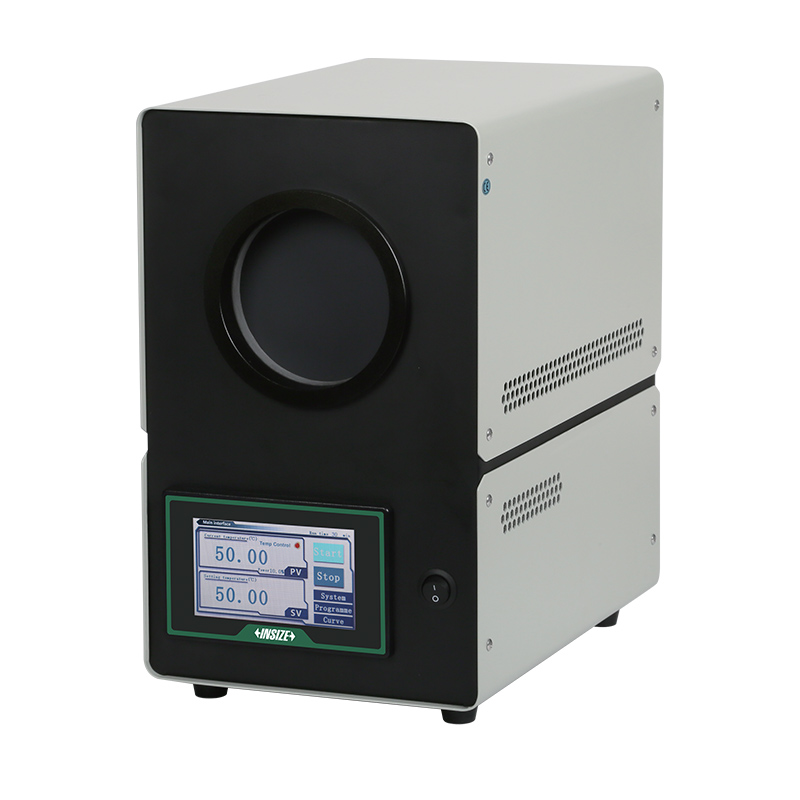

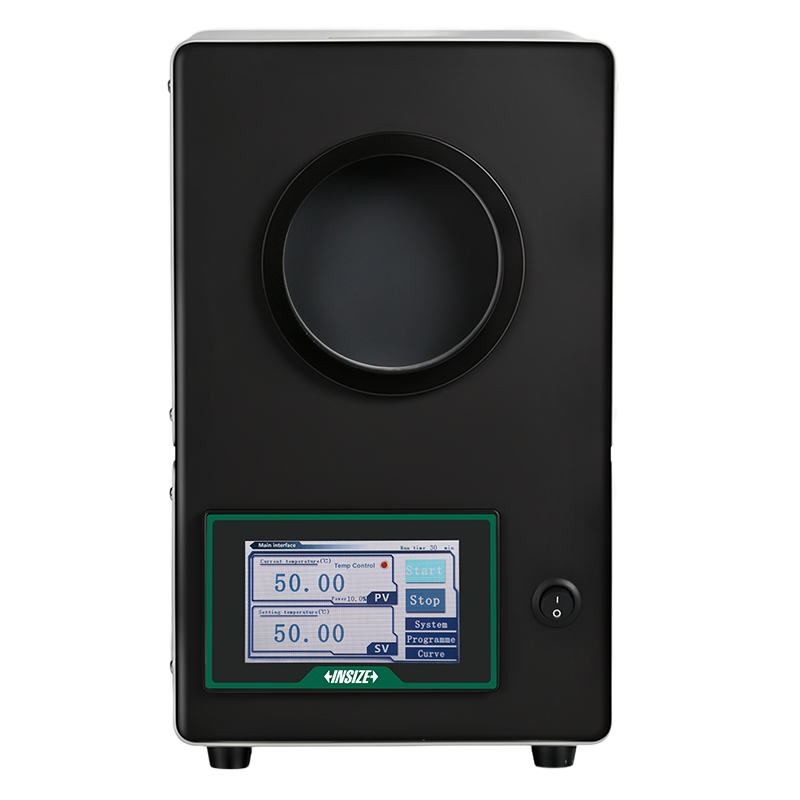

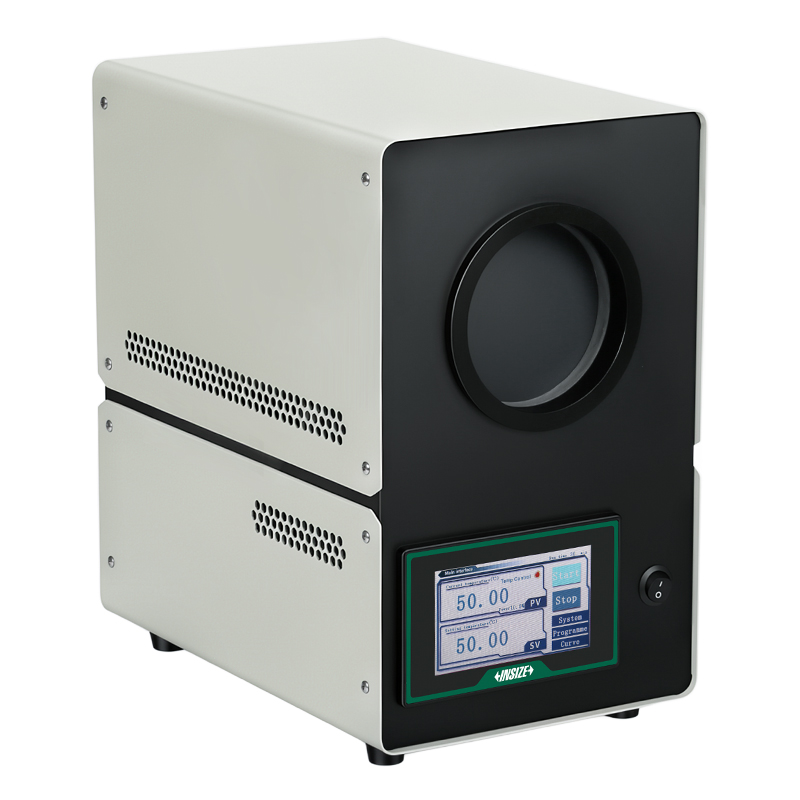

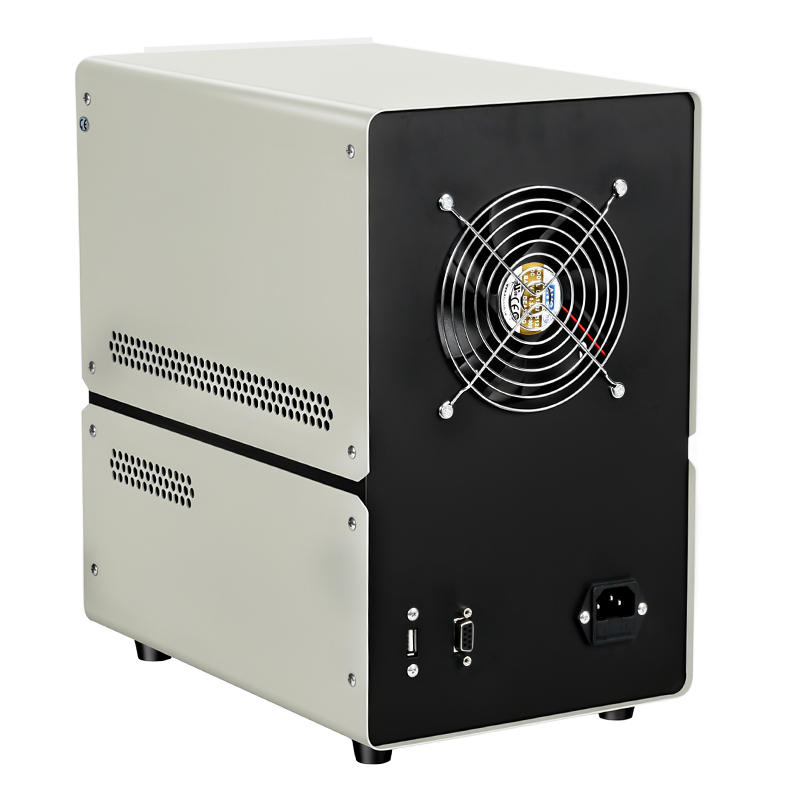

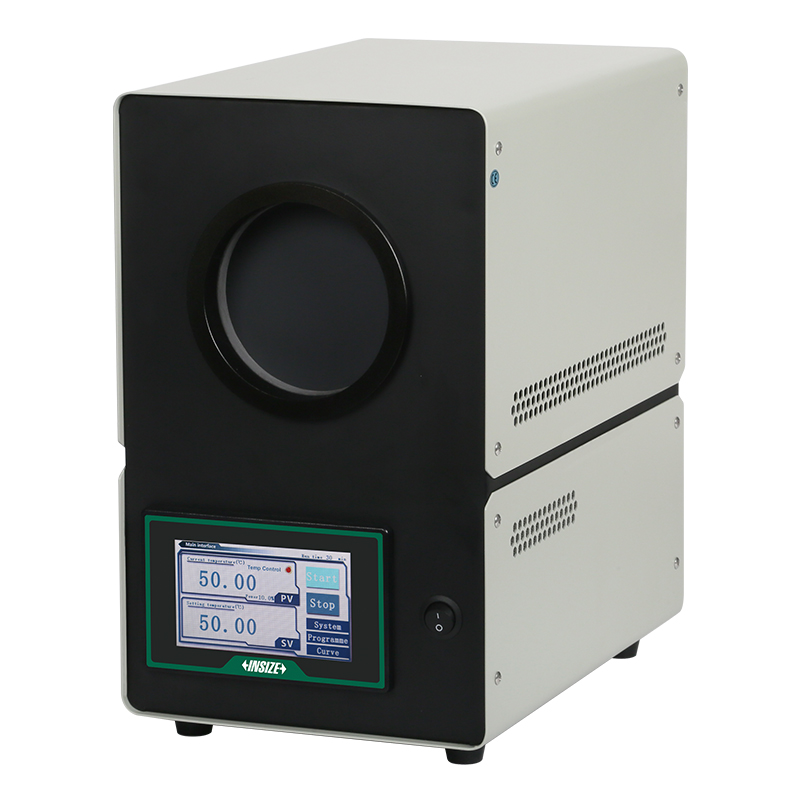

Surface Source Blackbody Radiation Sources (High Temperature Type)
Code: ASB-TS510/TS515
Adopt PID automatic temperature control mode, featuring fast heating rate and excellent temperature stability
Multi-point temperature calibration function
Equipped with a touch screen for simple operation and supports programmable control functionality
RS232 communication interface is included
| Code | Diameter (ØD) | Temperature range | Emissivity |
|---|---|---|---|
| ASB-TS510 | Ø100mm | RT+5°C~500°C | ≥0.95 (adjustable: 0.95~1.0) |
| ASB-TS515 | Ø100mm | RT+5°C~500°C | ≥0.95 (adjustable: 0.95~1.0) |
