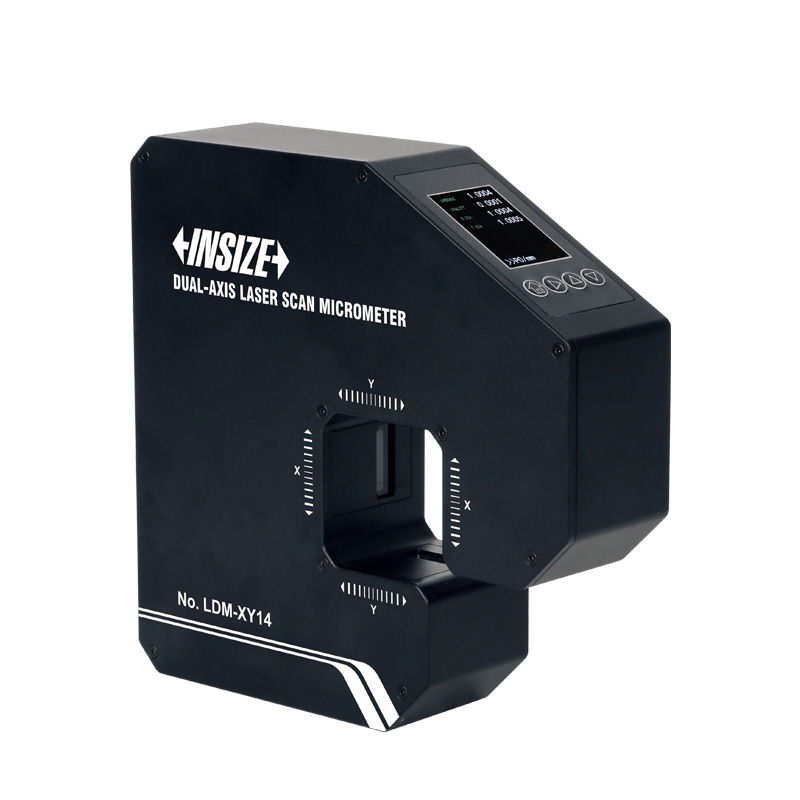

Dual-Axis Laser Scan Micrometer
Code: LDM-XY14
Simultaneously displays outer diameter and ovality with a single measurement
Can be used for transparent or non transparent workpieces
Tolerance measurement
Online or offline measurement
Connected with computer, PLC, control box
| Code | Range | Accuracy | Repeatability | Number of axes |
|---|---|---|---|---|
| LDM-XY14 | 0.05~14mm | ± (0.5+10%D)μm | (0.3+5%D)μm | 2 |

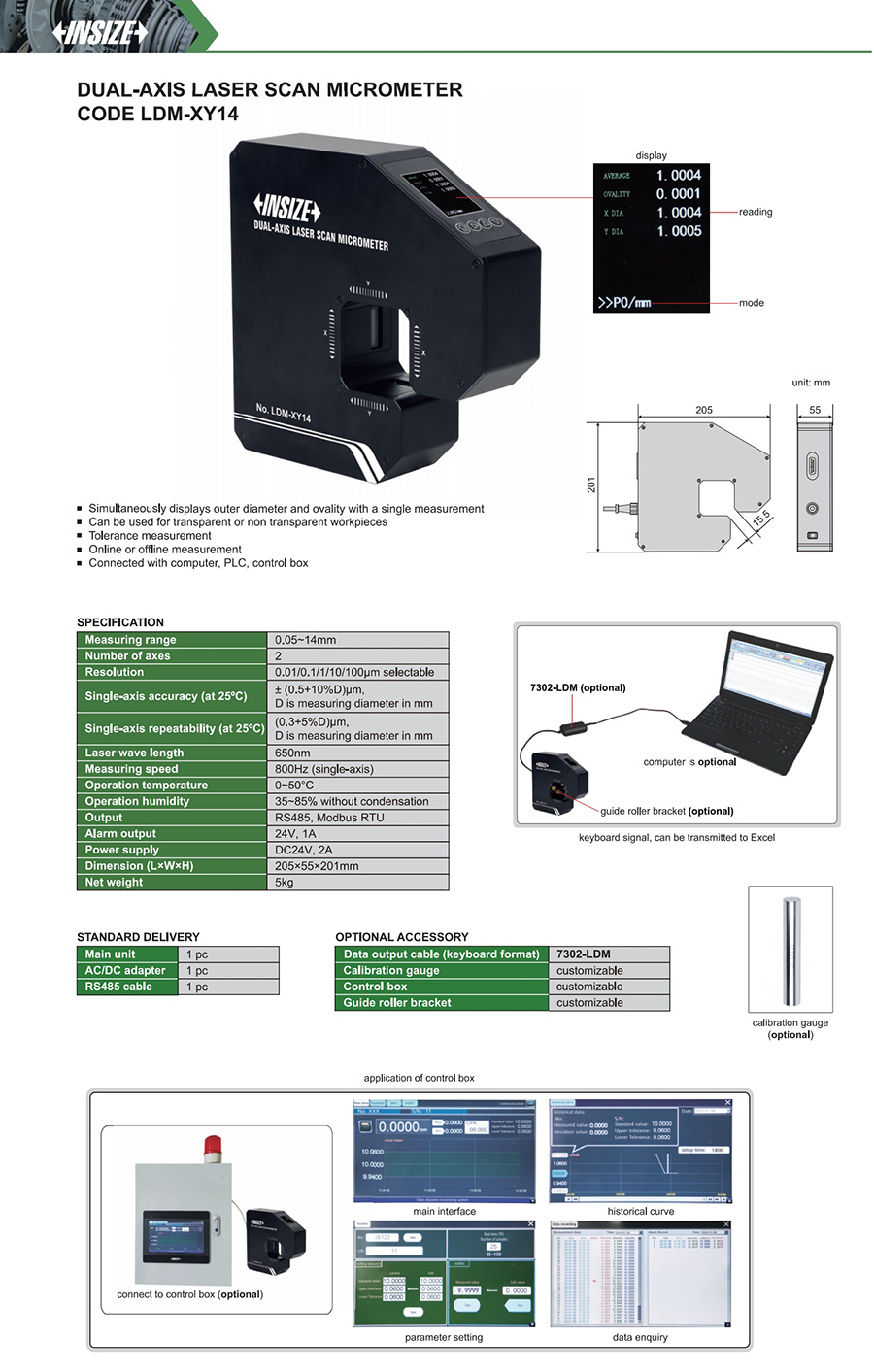

View the complete
product specifications
