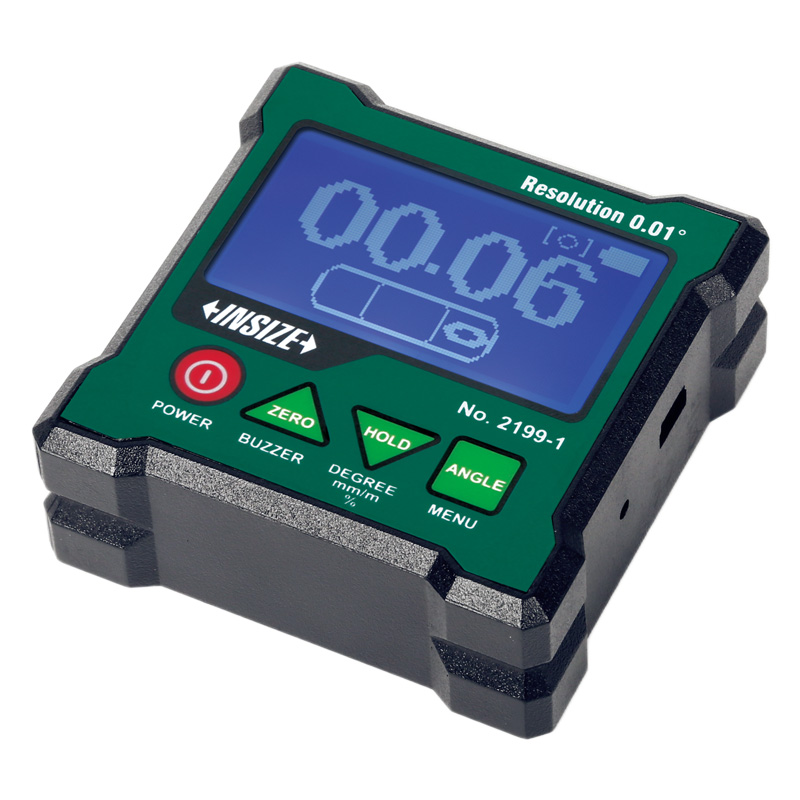

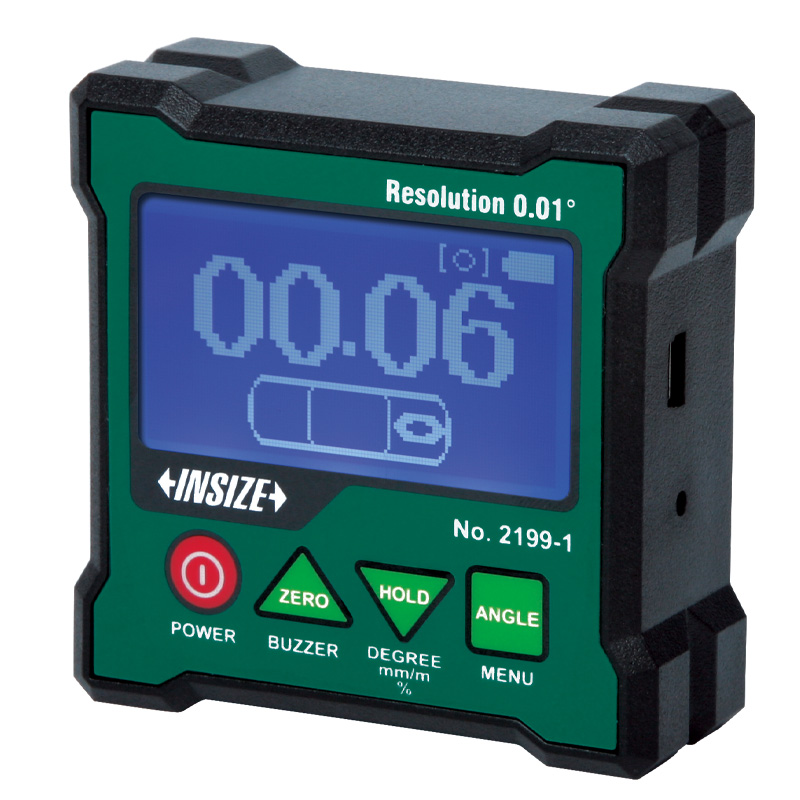

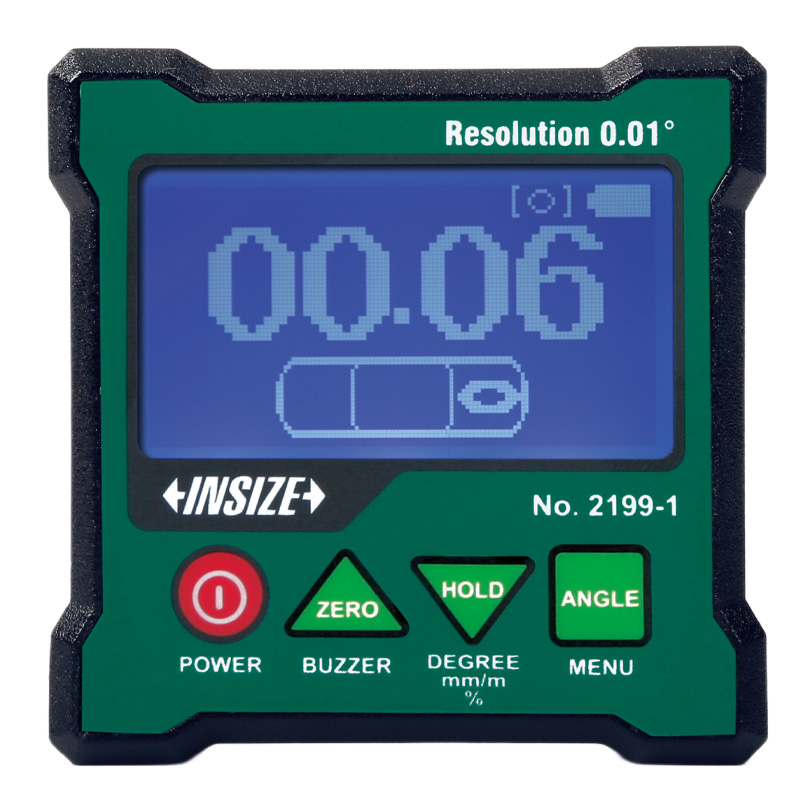

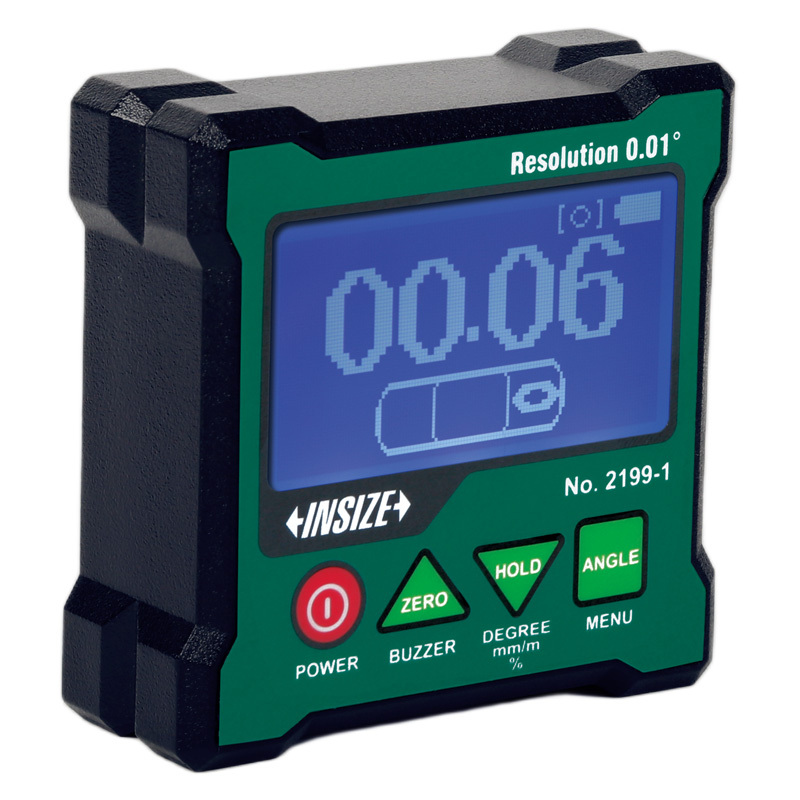

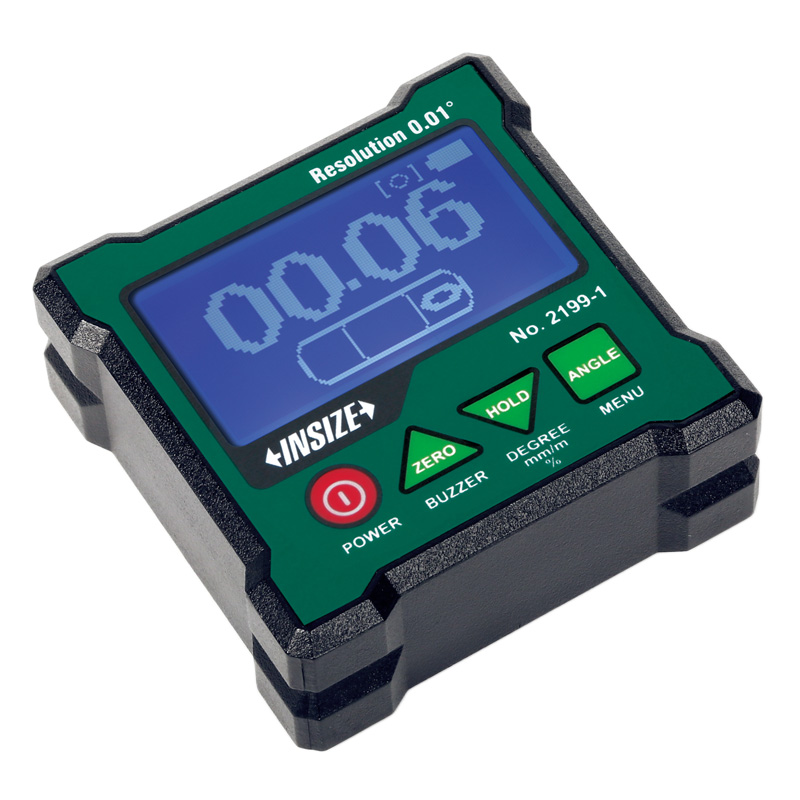

Dual Axis Digital Level And Gyro Angle Meters
Code: 2199-1/1WL
Single axis/dual axis level and slope meter, gyro technique can measure the angle between two planes in any direction
Hard plastic case, with V-shaped grooves, four magnetic sides
Display flips over when the bottom faces up
Audible alarm when out of limit
Buttons: POWER, ZERO, HOLD, display unit (°, mm/m, %), MENU
Automatic power off in 30 minutes
Android and iPhone APP, PC software are included
USB-C port, and supplied with 0.8m USB-C cable
Power supply: rechargeable Li-ion battery 3.7 V
| Code | Range | Accuracy | Resolution | Bluetooth |
|---|---|---|---|---|
| 2199-1 | single axis level: 4×90°, dual axis level: ±40°, gyro angle meter: 360° | 0°-20°: ±0.08°, 20°-70°: ±0.15°, 70°-90°: ±0.08°, ±0.5° | 0.01°, 0.1° | no |
| 2199-1WL | single axis level: 4×90°, dual axis level: ±40°, gyro angle meter: 360° | 0°-20°: ±0.08°, 20°-70°: ±0.15°, 70°-90°: ±0.08°, ±0.5° | 0.01°, 0.1° | yes |
