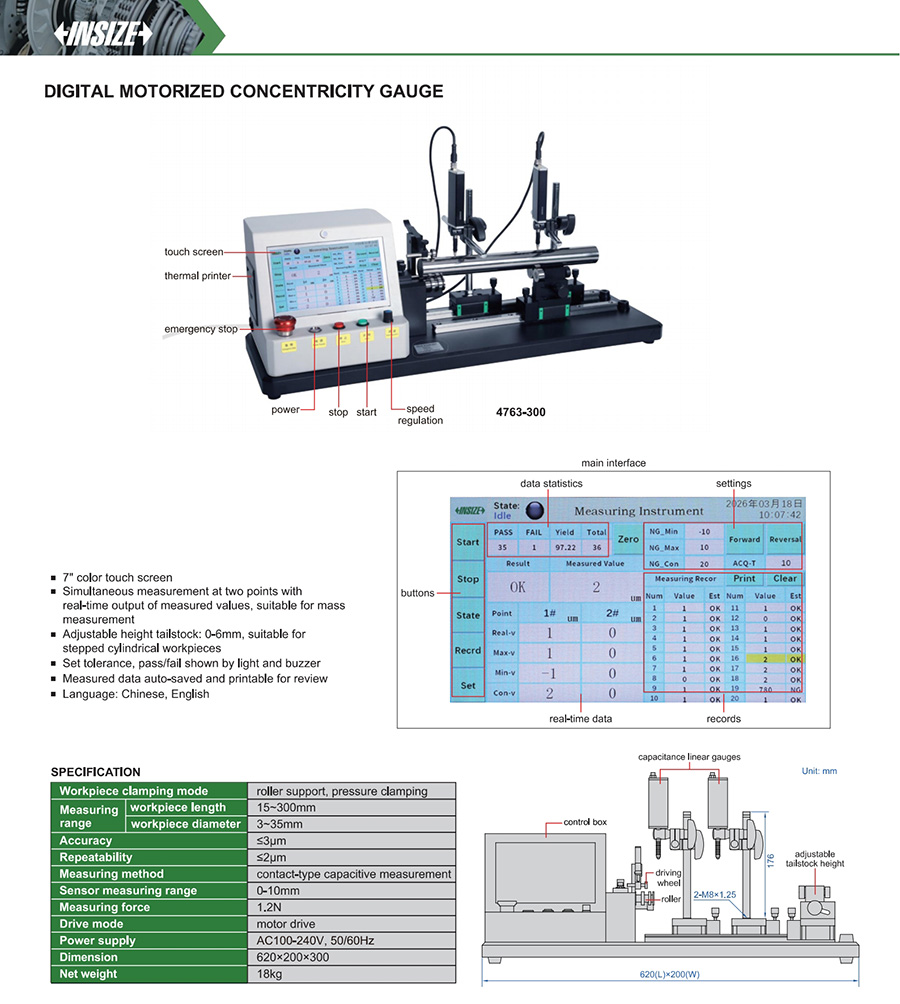

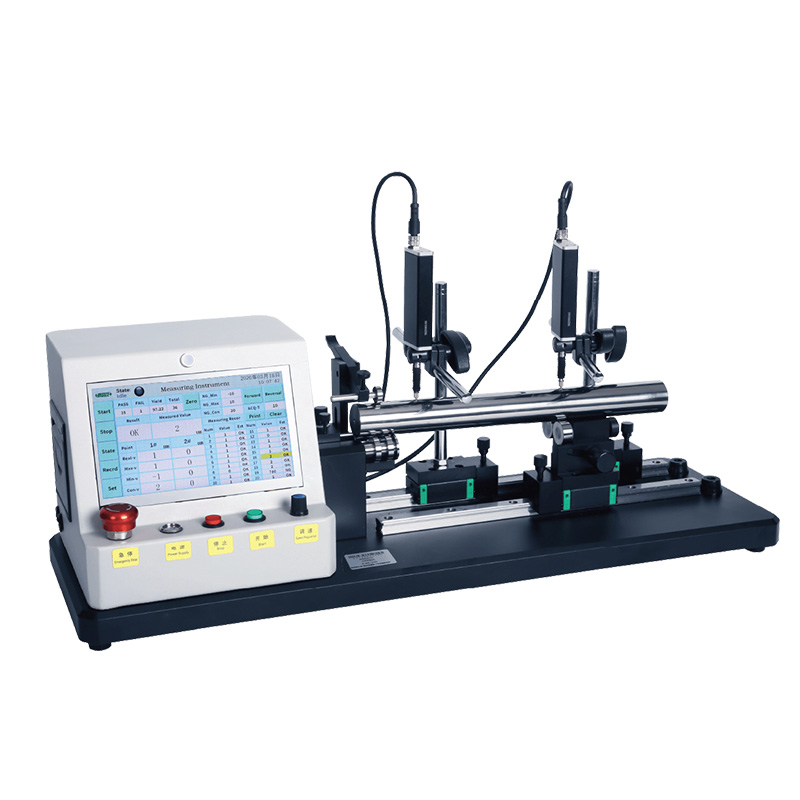

Digital Motorized Concentricity Gauge
Code: 4763-300
7" color touch screen
Simultaneous measurement at two points with real-time output of measured values, suitable for mass measurement
Adjustable height tailstock: 0-6mm, suitable for stepped cylindrical workpieces
Set tolerance, pass/fail shown by light and buzzer
Measured data auto-saved and printable for review
| Code | Range | නිරවද්යතාවය | Repeatability |
|---|---|---|---|
| 4763-300 | workpiece length: 15~300mm, workpiece diameter: 3~35mm | ≤3µm | ≤2µm |
